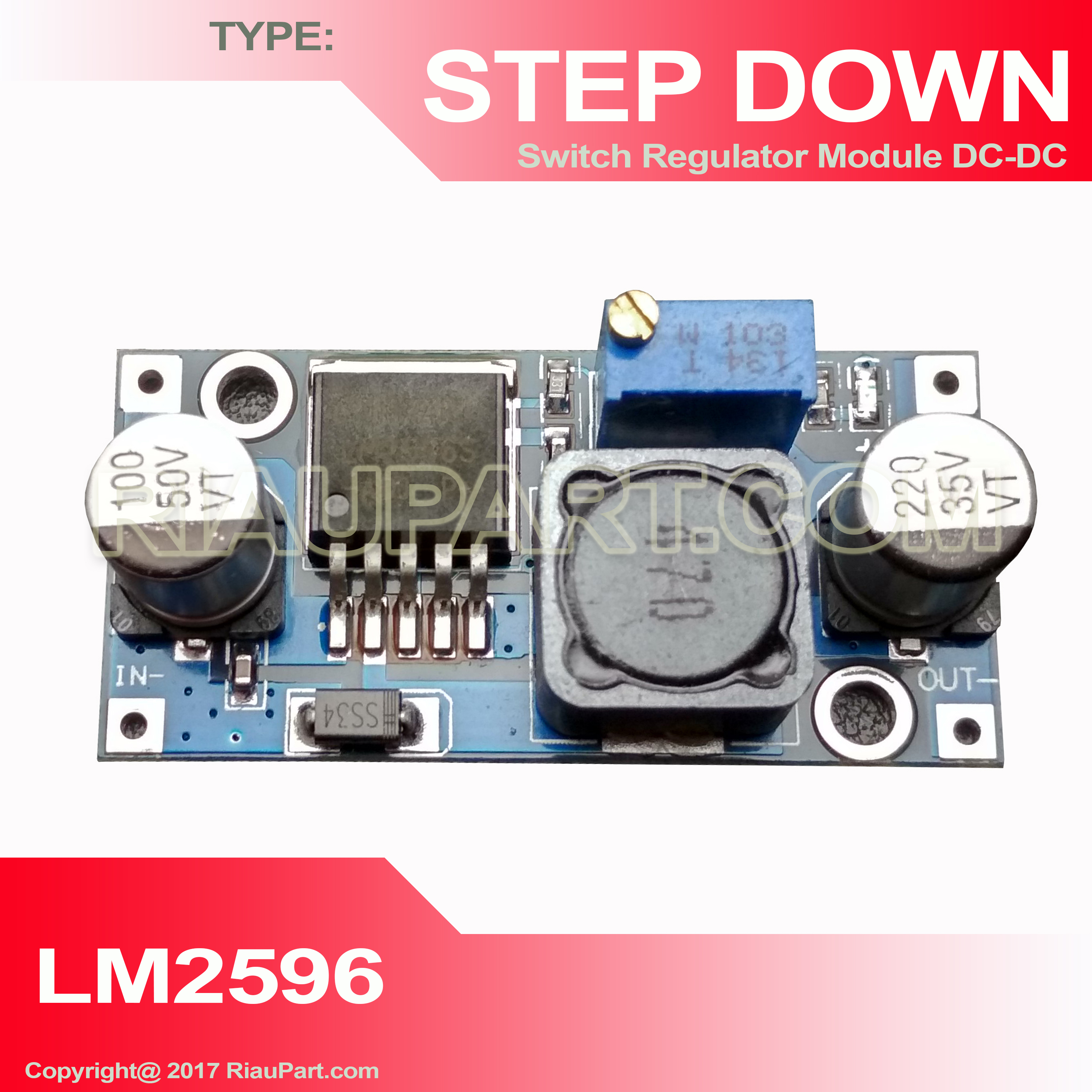

LM2596 3A adjustable DC-DC step down driver led module buck converter in DC 3.2V-46V out DC 1.25-35V
Modul LM2596 dapat digunakan untuk menurunkan tegangan DC maksimal hingga 3A dengan range DC 3.2V-46V dengan selisih minimum input - output 1.5V DC.
Keunggulan modul step down LM2596 adalah besar tegangan output tidak berubah (stabil) walaupun tegangan input naik turun, Output bisa di stel dengan memutar potensiometer
Cocok untuk pemasangan variasi mobil dan sepeda motor, dijadikan charger HP, power supply LED.
Dapat juga digunakan sebagai penyuntik tegangan pada komponen module mainboard, tcon dan powersupply smps,
Spesifikasi:
Model/name: LM2596S DC-DC Step-Down module
Tegangan input: 3.2-46V DC
Tegangan output: 1.25-35V DC
Selisih input output: Minimal 1.5V DC
Arus: Maksimal 3A, Untuk penggunaan jangka waktu lama disarankan untuk menggunakan arus kurang dari 2.5A atau menggunakan tambahan heatsink (diatas 10W)
Efisiensi step down: 92%
Output ripple: 30mV
Switching frequency: 65KHz
operating Temperature: -45 - 85 C
Dimensi: 43 x 21 x 14 mm
Features
- 3.3V, 5V, 12V, and adjustable output versions
- Adjustable version output voltage range, 1.2V to 37V4% max over line and load conditions
- Available in TO-220 and TO-263 packages
- Guaranteed 3A output load current
- Input voltage range up to 40V
- Requires only 4 external components
- Excellent line and load regulation specifications
- 150 kHz fixed frequency internal oscillator
- TTL shutdown capability
- Low power standby mode, IQ typically 80 A
- High efficiency
- Uses readily available standard inductors
- Thermal shutdown and current limit protection
